ICL821 LINK LOCK

ICL821 LINK LOCK

The ICL821 LINK LOCK is suitable for cabinet structures with IP54 and above protection grades. When used in conjunction with EPDM foam sealing strips, waterproof and breathable valves and other sealing components, it can effectively ensure the safe operating environment of electrical equipment inside the cabinet. It is widely applied in fields such as power, communication, new energy, data centers and industrial automation.

1. Product Features

1.1 Multi-point linkage ensures uniform locking

The lock body is synchronously driven by the upper and lower metal connecting rods to achieve simultaneous locking of two or more points of the cabinet door, eliminating the problems of uneven force on the door panel and inconsistent compression of the sealing strip caused by single-point locking, making the sealing effect more stable and reliable.

1.2 High-strength material, sturdy and durable

The main body of the lock is made of high-quality zinc alloy through die-casting, with a surface treated by chrome plating or plastic spraying, which is corrosion-resistant and impact-resistant. The connecting rod is made of cold-rolled steel or stainless steel, featuring high strength and good rigidity, meeting the requirements for long-term and frequent opening and closing.

1.3 Compact structure and easy installation

The product adopts a standardized opening size design, which is compatible with conventional cabinet door panels. Installation can be completed simply by drilling holes and fixing with screws. The length of the connecting rod can be flexibly cut according to the height of the cabinet to adapt to different specifications of cabinet types.

1.4 Smooth operation and reliable protection

The built-in transmission structure has been optimized in design, ensuring smooth rotation and accurate positioning. The lock core can be optionally equipped with multiple operation methods such as a triangular key, handle or knob, balancing safety and convenience to meet the usage requirements of different scenarios.

2. Core parameters

Product model: ICL821 (LINK LOCK)

Material of the lock body : Zinc alloy die-casting, surface chrome plating/powder coating

Material of connecting rod: Cold-rolled steel/stainless steel (optional)

Applicable door panel thickness: 1.5mm to 3.0mm

Connecting rod stroke: 15mm to 25mm each at the top and bottom (adjustable)

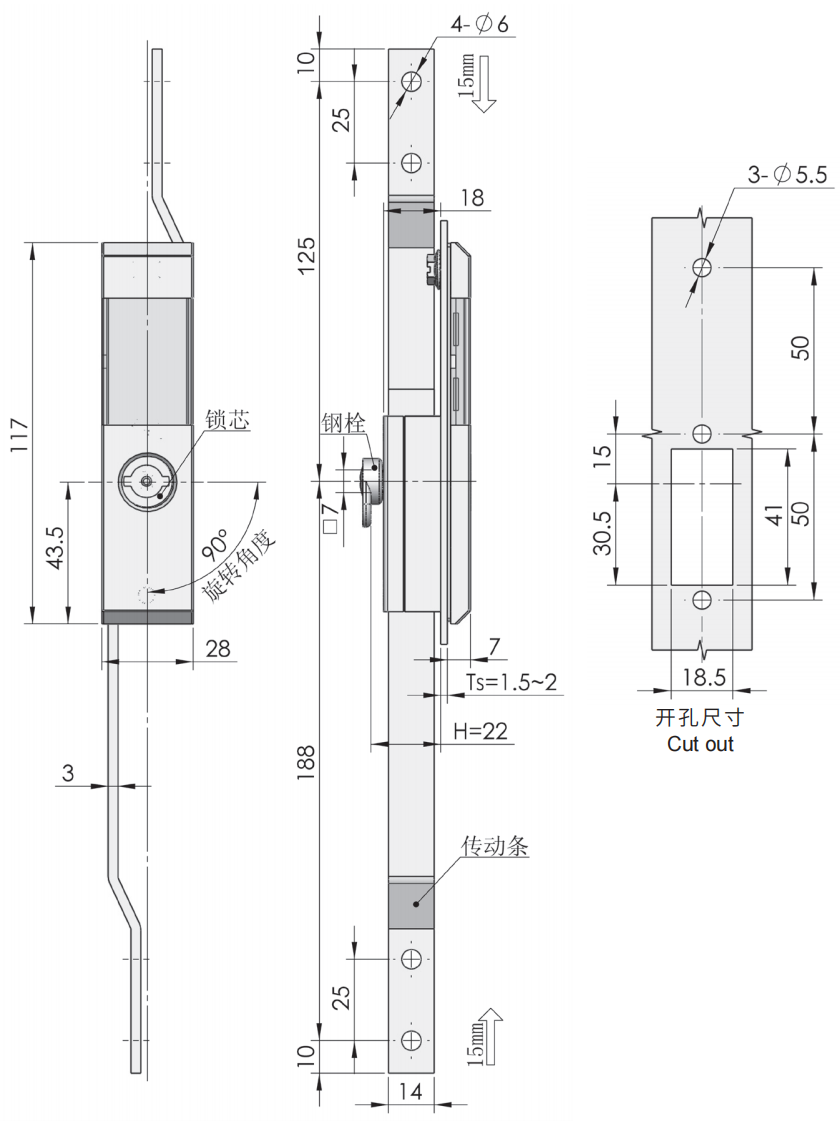

Opening size: Make holes according to the standard cabinet (drawings can be provided)

Operation mode: Triangular key/handle/knob (optional)

Protection grade: It can reach IP54 to IP66 when used in conjunction with sealing strips

Surface treatment: Chrome plating/powder coating/brushed (optional)

Applicable scenarios:  Electrical cabinets, control cabinets, distribution cabinets, energy storage cabinets, outdoor cabinets

3. Applicable scenarios

The doors of the power distribution cabinets, switch cabinets and control cabinets are tightly locked.

The communication cabinets and data center cabinets are locked tightly.

The doors of the energy storage cabinet and the new energy battery pack cabinet are tightly locked.

- Lock the doors of outdoor industrial cabinets and rainproof cabinets.

All kinds of sheet metal cabinets that require multi-point interlocking.

4. Quality and reliability

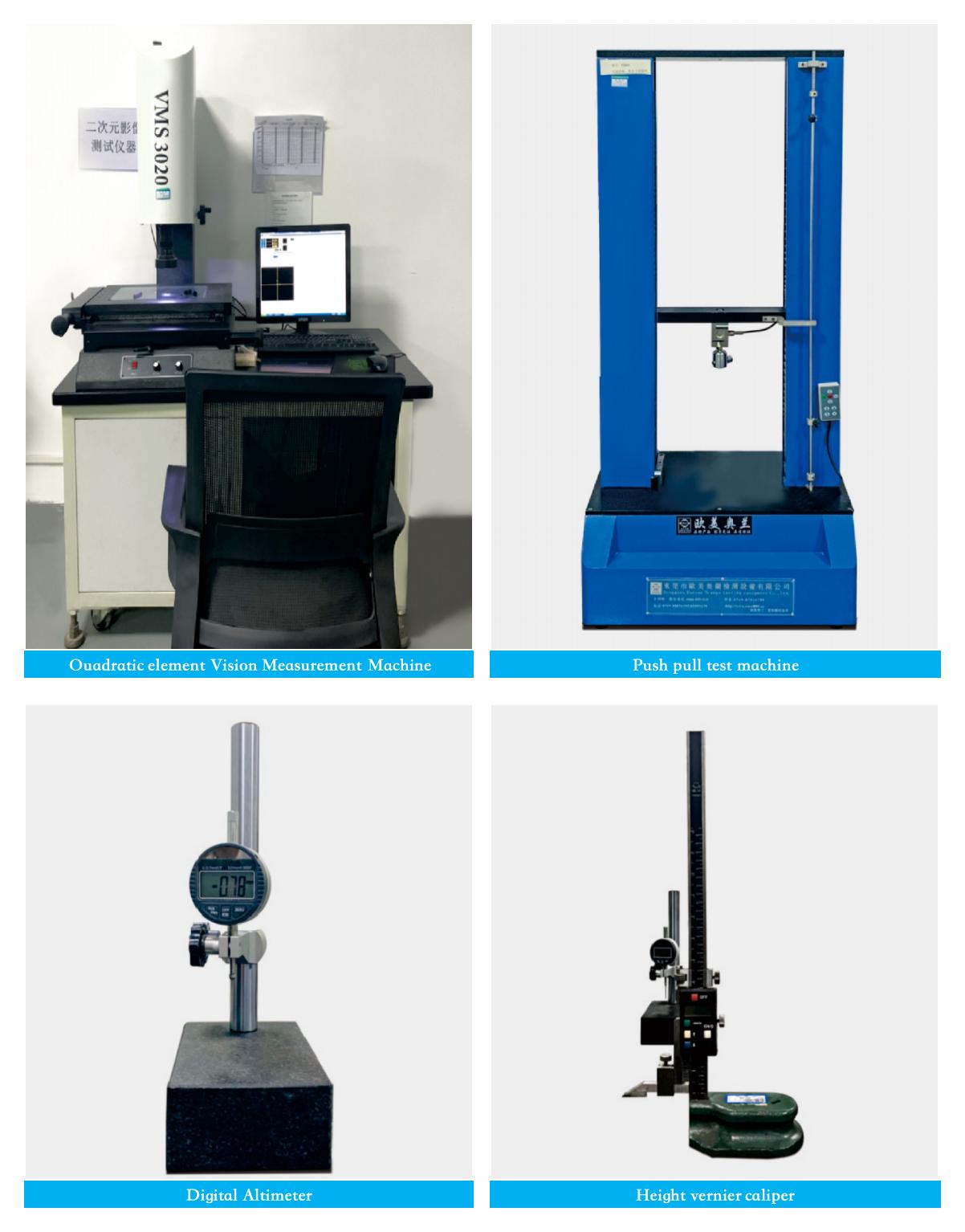

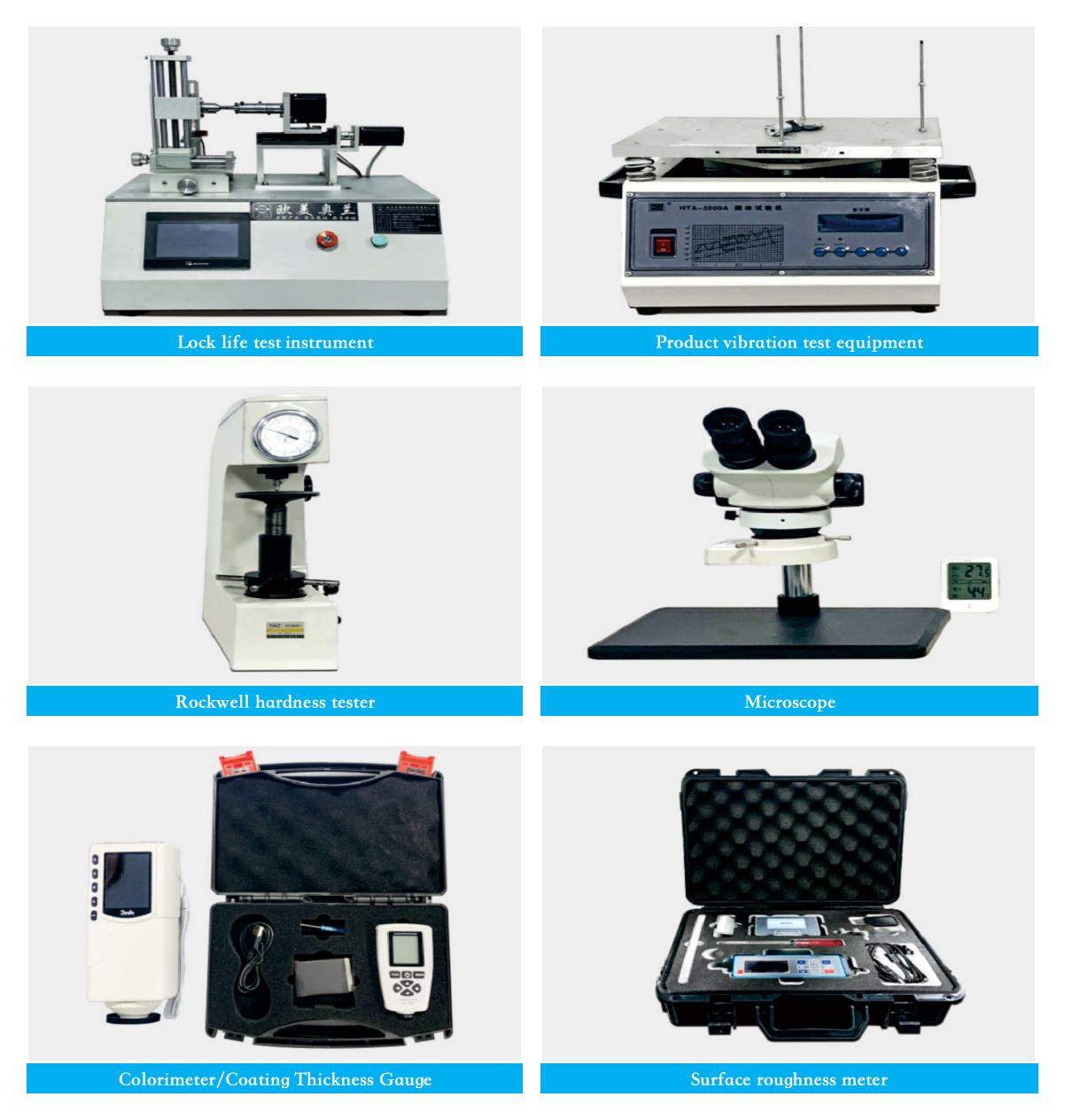

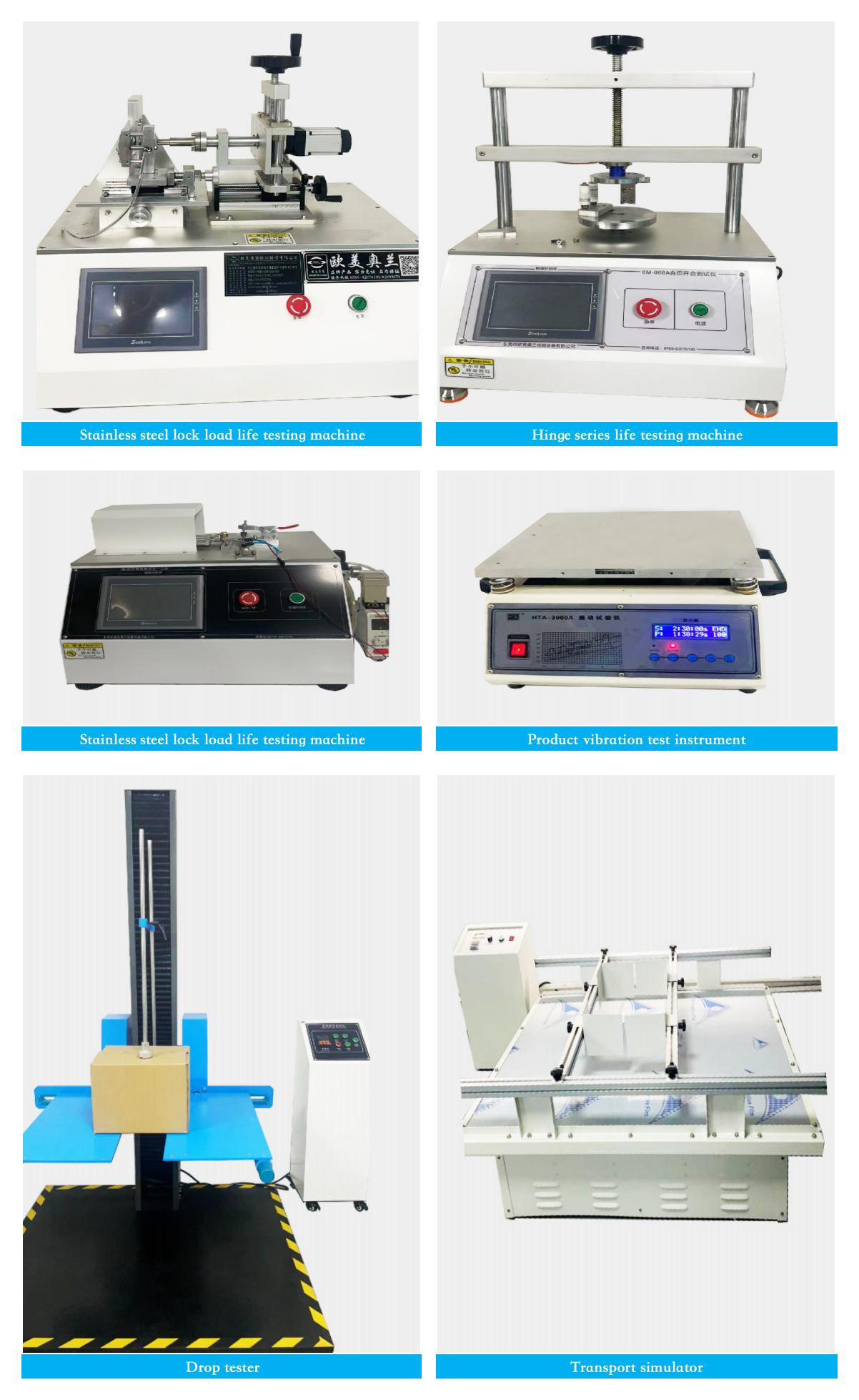

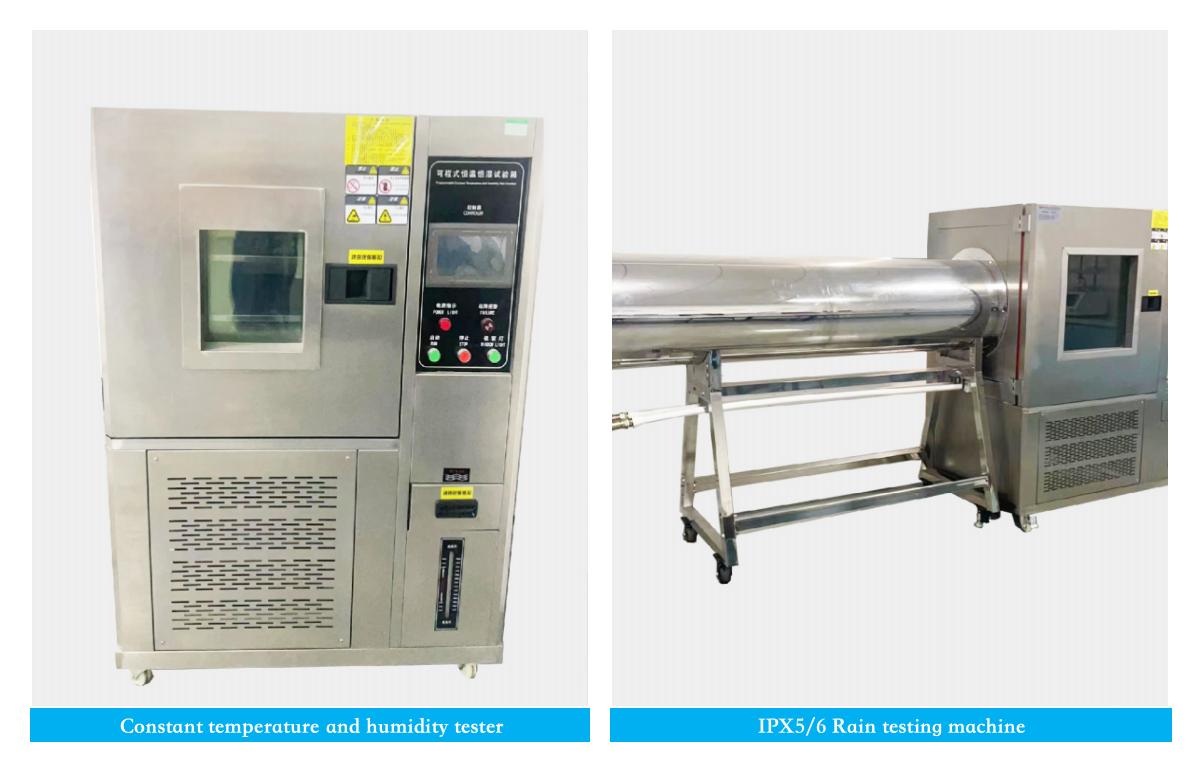

The product has been verified through salt spray tests, life tests and strength tests, and meets the long-term usage requirements in industrial environments. Each piece is inspected before leaving the factory to ensure smooth transmission, aligned lock points and tight fit. We can provide sample testing and customized services according to customer requirements, including customized connecting rod length, lock core type and surface treatment.

5.Product Description: Cabinet connecting rod lock, top and bottom rod lock, control cabinet multi-point lock, connecting rod lock with dust cover lock core, cabinet connecting rod drive lock, equipment cabinet door connecting rod lock;

Model: ICL821

Base material: base, transmission housing, lock core: zinc alloy;

Panel: ABS;

Connecting rod drive rod, lock tongue, key: carbon steel;

Performance parameter input torque value :≤9 n.m

Structural description: 90° rotation enables opening or locking, left rotation, right rotation, IP40

Surface treatment:

1. Panel: Black powder coating, nano matte, matte black powder coating. Color can be customized.

2. Connecting rod components: Hot-dip galvanizing, electro-galvanizing (rust and corrosion prevention);

3. Lock core: Nickel-plated treatment, wear-resistant and rust-proof;

Processing technology: die-casting, CNC fine finishing, stamping, bending, drilling and tapping, assembly, torque testing, opening and closing life inspection;

Unit price: Priced based on quantity;

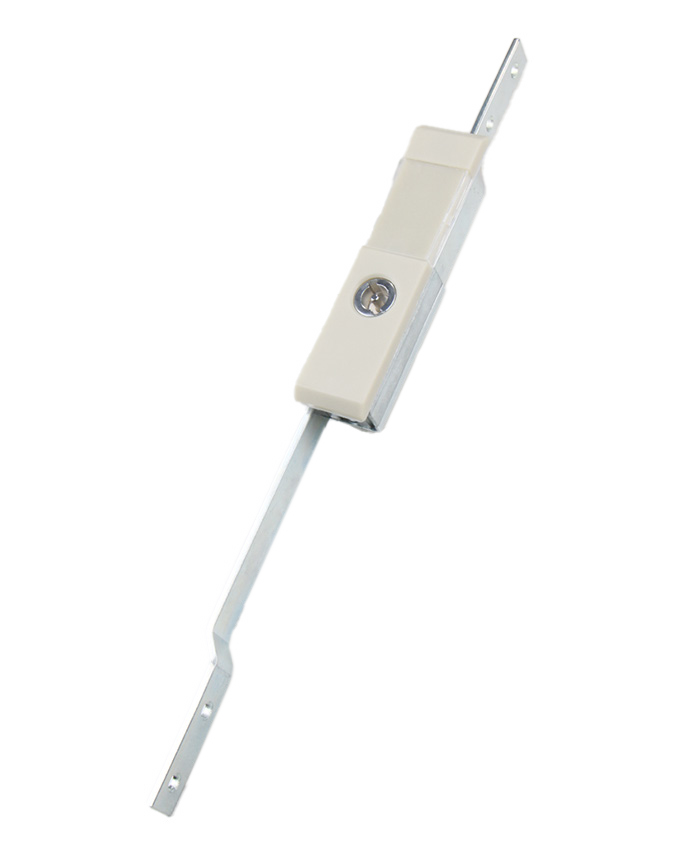

Product:

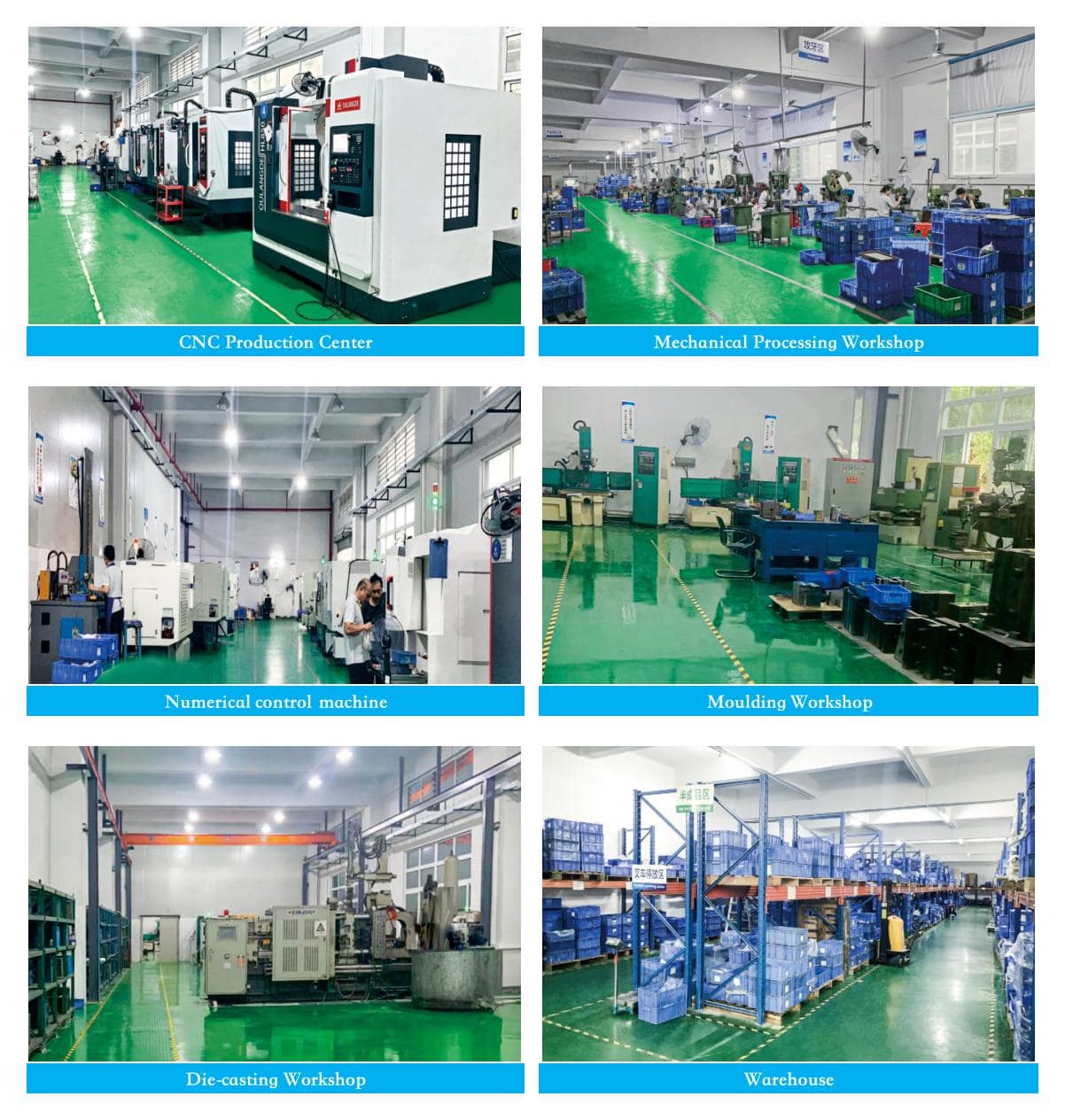

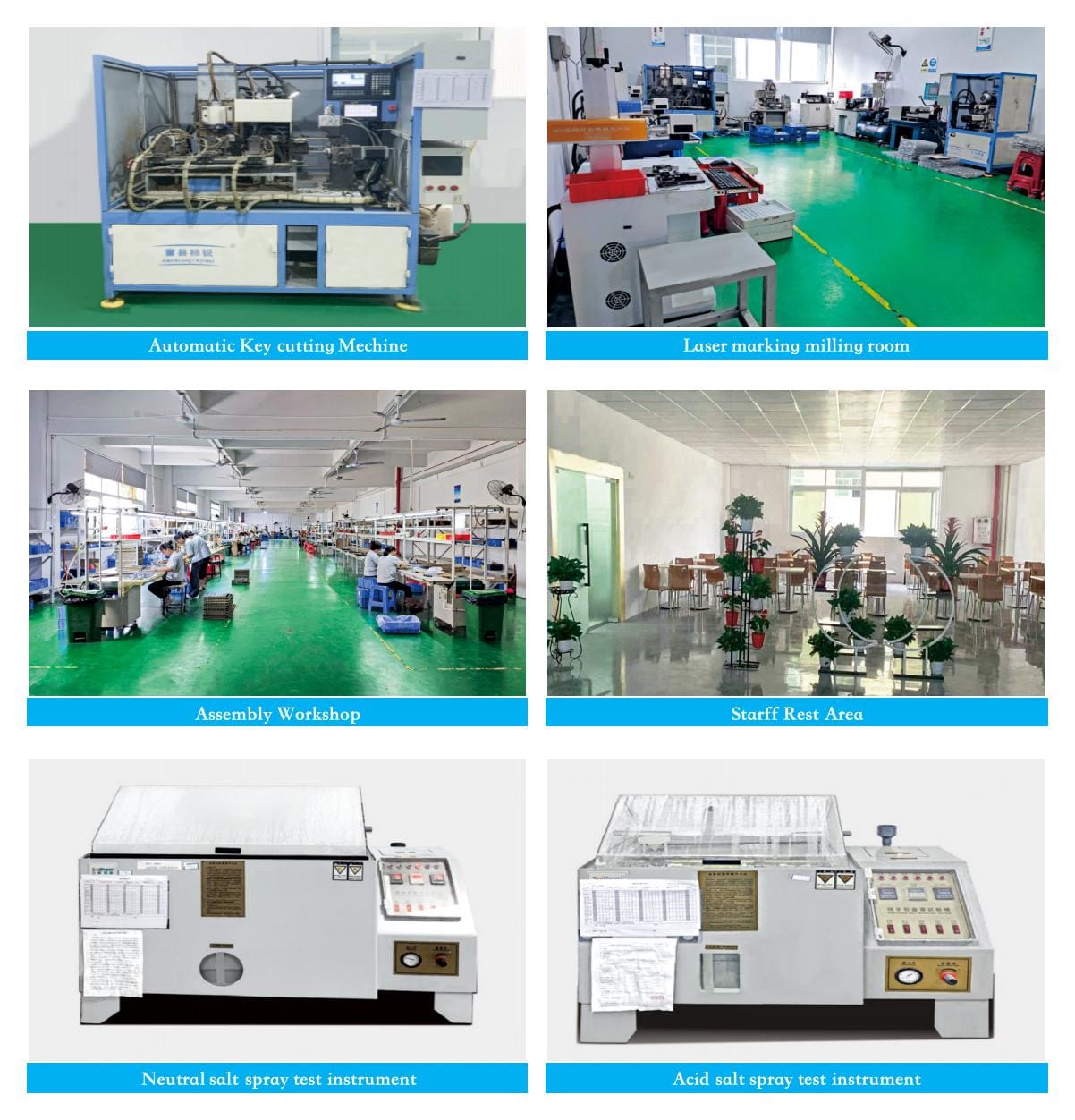

车间：

Packaging: 1. Individual items: PE bag packaging + paper box for the product to prevent surface scratches; Each set comes with a key and an installation screw accessory bag.

2. Small batch: Packed in export corrugated cartons;

3. Large quantities: Cartons are stacked on ISPM-15 heat-treated solid wood pallets, with corner protection and overall fastening with stretch film

Logistics: Sea freight, air freight, international express delivery (DHL, FedEx, UPS, TNT), railway transportation (mainly China-Europe Railway Express), road and land transportation (short-distance foreign trade with neighboring countries)
