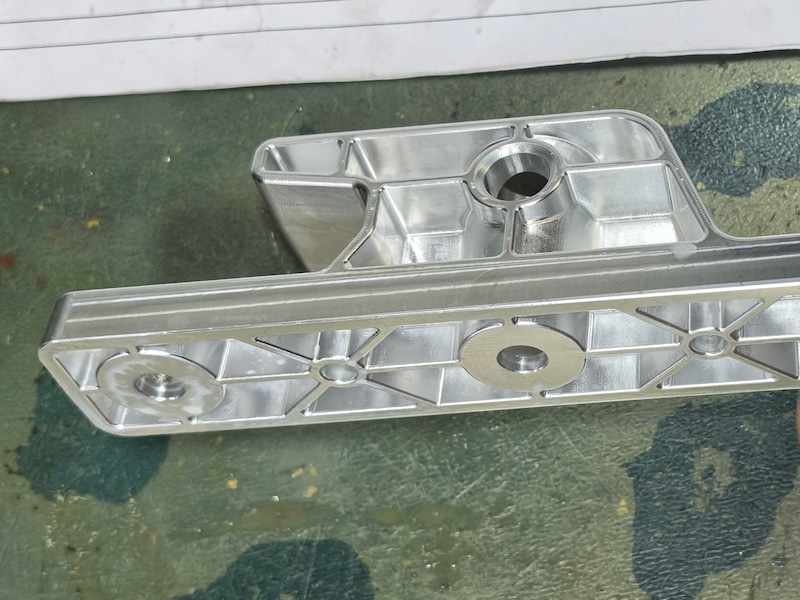

This PV Inverter Wall‑mount Bracket is an aluminum alloy part machined from a solid block via multi-axis CNC milling and serves as a core structural element of the equipment. The product structure is carved from a single aluminum plate using CNC milling, followed by an overall polishing process; positioning pin holes, screw holes, and mounting locations for inserts can be custom-configured based on the equipment's weight and dimensions.
Item No :
CNC-0003Order(MOQ) :
1Payment :
50% T/T in advance, Balance paid again when finishing production and before shipmentProduct Origin :
XiamenColor :
RAL、PANTONE、GSB05···Custom colorsShipping Port :
Xiamen Port,ChinaLead Time :
25-45daysWeight :
As per product's size and thickness and materials.Wall-Mount Bracket for PV Inverters
Product Description:
Assembly Line Module Racks / Frames for Assembly Line Modules, Equipment Connection and Fixed Brackets / Equipment Mounting and Fixing Brackets, Photovoltaic Inverters / Components for PV Inverters, Energy Storage / Energy Storage Systems, Internal Support Structural Components for Lithium Battery Equipment / Lithium-ion Battery Manufacturing Equipment, Testing Instruments, Medical Equipment Racks / Medical Equipment Frames, Photographic Equipment, Sports Equipment, Lightweight Connection Parts for Industrial Robots / Lightweight Connectors for Industrial Robots.
Model: OEM/ODM
Base Material: Thickness: 3-300mm. 6 series aluminum alloys (6061, 6063, 6060, 6082) or 7 series super-hard aluminum (7075-T6/T651, 7050, 7079) feature high hardness, strong rigidity and excellent corrosion resistance, and can meet electromagnetic compatibility (EMC) standards.

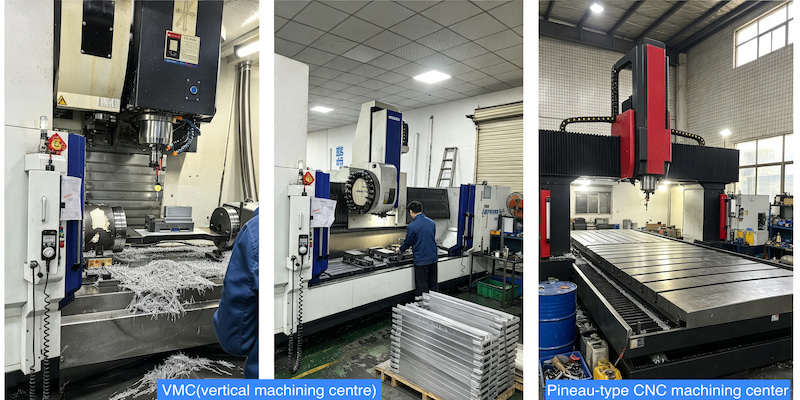

Processing Technology: Thick plate cutting →CNC rough milling to remove allowance → Semi-finishing contour, hole position and installation base → Fine finishing of the inner wall of the cavity → Mirror high-gloss polishing (the cavity achieves a mirror effect) → Hole diameter and plane accuracy correction and detection.
( Thick plate cutting → CNC rough milling (stock removal) → Semi-finish machining of contours, holes, and mounting bases → Precision finishing of cavity inner walls → Mirror-finish polishing (achieving a mirror-like surface in the cavity) → Inspection and calibration of hole diameters and flatness.)
The entire set of cavities, installation holes and positioning structures are all processed by CNC integrated processing, featuring high dimensional accuracy and uniform fit clearances.(Integrated CNC machining for the entire assembly—including cavities, mounting holes, and positioning structures—ensures high dimensional accuracy and uniform fit tolerances.)
Accuracy / Precision:
Plate/sheet external dimensions (length & width): ±0.01 to ± 0.02mm;
Cavity length, width and depth forming dimensions: ±0.005 to ± 0.01mm;
The aperture tolerance /Hole diameter tolerance is ±0.003 to ±0.005mm
Surface Treatment: Customized according to anti-corrosion and wear-resistant requirements.
Common Processes: mechanical rough polishing/fine polishing, mirror polishing (high-gloss mirror surface), brushing treatment / brushed finish, natural color/colored anodizing, chemical polishing, passivation treatment (chromate/chromium-free passivation), powder coating (RAL, Pantone, GSB05-1426-2001)
Unit Price: Quoted according to the drawings;
Packaging: Multi-layer anti-rust barrier + vacuum sealing + sufficient calcium chloride desiccant + thickened shockproof foam + solid wood fumigated heavy-duty wooden box (fumigation-free plywood wooden box, carton) + corner wood corner protectors for reinforcement
Logistics: Sea freight, air freight, international express delivery (DHL, FedEx, UPS, TNT), railway transportation (mainly China-Europe Railway Express), road and land transportation (short-distance foreign trade with neighboring countries)
